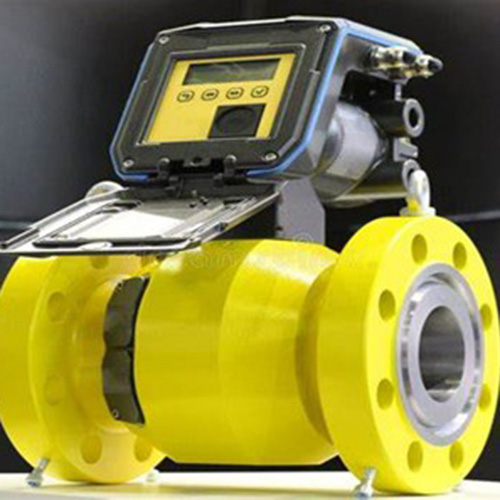

An ultrasonic flow meter is a type of flow meter that measures the velocity of a fluid with ultrasound to calculate volume flow. Using ultrasonic transducers, the flow meter can measure the average velocity along the path of an emitted beam of ultrasound, by averaging the difference in measured transit time between the pulses of ultrasound propagating into and against the direction of the flow or by measuring the frequency shift from the Doppler effect. Ultrasonic flow meters are affected by the acoustic properties of the fluid and can be impacted by temperature, density, viscosity and suspended particulates depending on the exact flow meter.
Description
An ultrasonic flow meter is a type of flow meter that measures the velocity of a fluid with ultrasound to calculate volume flow. Using ultrasonic transducers, the flow meter can measure the average velocity along the path of an emitted beam of ultrasound, by averaging the difference in measured transit time between the pulses of ultrasound propagating into and against the direction of the flow or by measuring the frequency shift from the Doppler effect. Ultrasonic flow meters are affected by the acoustic properties of the fluid and can be impacted by temperature, density, viscosity and suspended particulates depending on the exact flow meter.
SPECIFICATIONS:
- Nominal Pipe Szie: 2’’ to 56’’
- Accuracy: 4-path and 8-path version ≤ ± 0.5 % | (≤ ± 1%) Dry-calibrated
- Operating Pressure: 0 bar (g) … 450 bar (g) 0 psi (g) … 6527 psi (g)
- Power Supply; 24 Vdc
- Output: 4..20mA / Hart / Pulse / Profbus / Modbus TCP / Foundation Fieldbus
