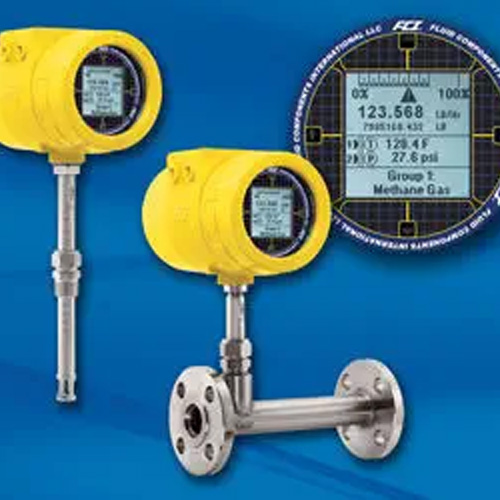

Thermal mass flow meter technology utilizes the relationship between flow rate and cooling effect for direct measurement of mass flow. With no moving parts and minimal invasiveness, thermal flow meters provide a highly repeatable, accurate, low cost, easy to install solution for air and gas flow measurements.
Description
| SPECIFICATION | APPLICATION DETAILS |
| Gases | Most clean gases, including Natural
Gas, Air, Methane, Ar, CO2, He, N2, O2, C3H8, and mixtures of these components |
| In-line flow body
sizes |
1’’ to 60’’ Pipe Sizes |
| In-line meter mass
flow rate range for air Insertion meter mass velocity range for air |
0.25 SFPS to 1000 SFPS [0,07 NMPS to 305 NMPS]
0.0062 SCFM to 838 SCFM [0.01 Nm3/h to 1425 Nm3/h] |
| Temperature range | Up to 850°F [454°C] commensurate with element |
| Pressure Measurement Range | 0 psig to 1000 psig 0 bar (g) to 70 bar (g)] |
| Accuracy | ± 0.75% reading, ± 0.5% full scale |
| Agency Approval | Atex Certified |
| Input Power | 230 Vac or 24 Vdc Power Supply |
| Output | 4..20mA / Hart / Foundation field bus / Profibus |
