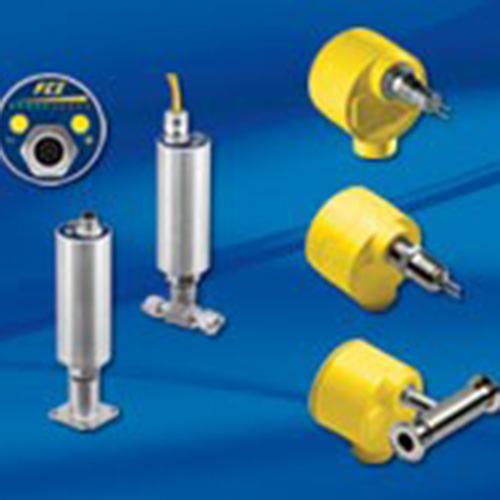

Flow switches are either mechanical or electronic devices that provide a signal to an operator or control system that the flow rate is exceeding or has fallen below a setpoint value. When the flow rate is above (high flow) or below (low flow) the setpoint, electronic flow switches trigger an output signal, typically a relay or transistor, to change state. The change in state can be applied as a warning, an alarm signal, to adjust a process control device, suspend or shut-down the process, etc
Description
Flow switches are either mechanical or electronic devices that provide a signal to an operator or control system that the flow rate is exceeding or has fallen below a setpoint value. When the flow rate is above (high flow) or below (low flow) the setpoint, electronic flow switches trigger an output signal, typically a relay or transistor, to change state. The change in state can be applied as a warning, an alarm signal, to adjust a process control device, suspend or shut-down the process, etc
|
SPECIFICATION |
APPLICATION DETAILS |
|
Gases / Liquid |
Most clean gases, including Natural Gas, Air, Methane, Ar, CO2, He, N2, O2, C3H8, mixtures of these Components and liquids |
|
In-line flow body sizes |
1’’ to 60’’ Pipe Sizes |
|
In-line meter mass flow rate range for air Insertion meter mass velocity range for air |
0.25 SFPS to 1000 SFPS [0,07 NMPS to 305 NMPS] 0.0062 SCFM to 838 SCFM [0.01 Nm3/h to 1425 Nm3/h] |
|
Temperature range |
Up to 850°F [454°C] commensurate with element |
|
Pressure Measurement Range |
0 psig to 1000 psig 0 bar (g) to 70 bar (g)] |
|
Accuracy |
± 0.75% reading, ± 0.5% full scale |
|
Agency Approval |
Atex Certified |
|
Input Power |
230 Vac or 24 Vdc Power Supply |
|
Output |
4..20mA / Hart / Foundation field bus / Profibus |
