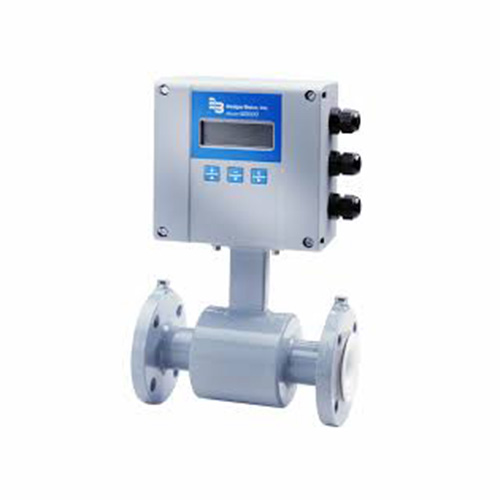

The Electromagnetic flow meter has a wide selection of liner and electrode materials to help ensure maximum compatibility and minimum maintenance over a long operating period.
Strict Accuracy Standards. Features sophisticated, processor-based signal conversion with accuracy of ±0.20% of rate ±1 mm/s with appropriate straight run. Delivers accuracy of ±1% with zero straight run required in applications with limited space.
Enhanced Data. Offers BACnet MS/TP, BACnet/IP, EtherNet/IP and Modbus TCP/IP communication protocols and seamlessly integrates into existing operations to provide enhanced data points. This is the first full-bore inline electromagnetic meter to complete the BACnet Testing Laboratories (BTL) Certification Program.
Application Versatility. Measures water, wastewater, water-based fluids and other liquids with minimum electrical conductivity, making it suitable for a wide range of applications.
Description
SPECIFICATIONS:
- Rating: General purpose
- Size: 1/4…78 in.
- Temperature Range: Up to 302° F
- Flow Range: 0.10…39.4 ft/sec (0.01…597,525 gpm)
- Accuracy: ±0.2%
- Communication
- RS232 Modbus RTU is standard; Also available are Modbus RTU, HART, Profibus DP, BACnet/IP, BACnet
- MS/TP, Modbus TCP/IP and EtherNet/IP communication protocols, all of which require separate daughterboards
- Power Supply: 10…36V DC | 85…265V AC
