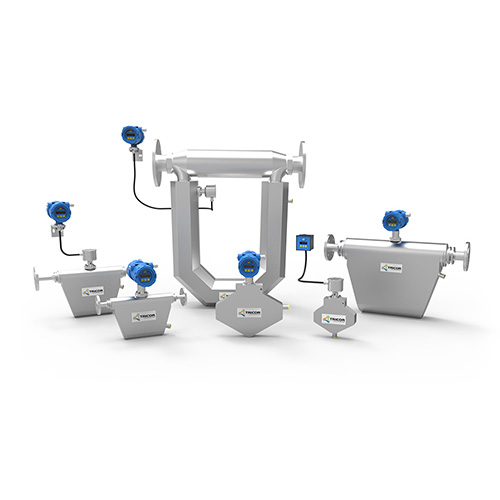

Coriolis Mass Flow Meters
With low cost and limited specification, it meets a wide range of applications. The product line is typically used in painting, coating and metering applications with non-corrosive fluids that require 0.1 % accuracy and little to no maintenance.
Description
Coriolis Mass Flow Meters
With low cost and limited specification, it meets a wide range of applications. The product line is typically used in painting, coating and metering applications with non-corrosive fluids that require 0.1 % accuracy and little to no maintenance.
| Mass Flow Rate | Volumetric flow rate | Nominal Meter Size | Pressure Rating | Accuracy Liquids | Accuracy Gases | Density Range | Density Accuracy | Wetted Materials |
| 325 kg/h [12 lb/min] | 325 l/h [1.43 gpm, 49 oil bbl/d (US)] | DN4 [1/8”] | 200 bar [2,900 psi]
Option: up to 345 bar [5,000 psi] |
±0.1 % of flow rate | ±0.5 % of flow rate | up to 2,500 kg/m3 [2.5 g/cm3] | ±1.0 kg/m3 [±0.001 g/cm3] | Tubes: 1.4404 [AISI 316L]
Case: 1.4404 [AISI 316L] Flow Splitter: 1.4404 [AISI 316L] Brazing Alloy: BNi-2 |
| 7,900 kg/h [290 lb/min] | 7,900 l/h [34.78 gpm, 1,193 oil bbl/d (US)] | DN15 [1/2”] | 100 bar [1,450 psi] | ±0.1 % of flow rate | ±0.5 % of flow rate | up to 2,500 kg/m3 [2.5 g/cm3] | ±1.0 kg/m3 [±0.001 g/cm3] | Tubes: 1.4404 [AISI 316L]
Case: 1.4404 [AISI 316L] Flow Splitter: 1.4404 [AISI 316L] Brazing Alloy: BNi-2 |
| 28,000 kg/h [1,029 lb/min] | 28,000 l/h [123.3 gpm, 4,227 oil bbl/d (US)] | DN25 [1”] | 100 bar [1,450 psi] | ±0.3 % (option: up to ±0.15 %) of flow rate | ±0.3 % (option: up to ±0.2 %) of flow rate | up to 2,500 kg/m3 [2.5 g/cm3 | ±1.0 kg/m3 [±0.001 g/cm3] | Tubes: 1.4404 [AISI 316L]
Case: 1.4404 [AISI 316L] Flow Splitter: CF3M [AISI 316L] Brazing Alloy: BNi-2 |
| 65,000 kg/h [2,388 lb/min] | 65,000 l/h [286.2 gpm, 9,812 oil bbl/d (US)] | DN40 [11/2”] | 100 bar [1,450 psi] | ±0.3 % (option: up to ±0.15 %) of flow rate | ±0.3 % (option: up to ±0.2 %) of flow rate | up to 2,500 kg/m3 [2.5 g/cm3 | ±1.0 kg/m3 [±0.001 g/cm3] | Tubes: 1.4404 [AISI 316L]
Case: 1.4404 [AISI 316L] Flow Splitter: CF3M [AISI 316L] Brazing Alloy: BNi-2 |
| 230,000 kg/h [8,450 lb/min] | 230,000 l/h [1,013 gpm, 34,720 oil bbl/d (US)] | DN80 [3”] | 100 bar [1,450 psi] | ±0.3 % (option: up to ±0.15 %) of flow rate | ±0.3 % (option: up to ±0.2 %) of flow rate | up to 2,500 kg/m3 [2.5 g/cm3] | ±1.0 kg/m3 [±0.001 g/cm3] | Tubes: 1.4404 [AISI 316L]
Case: 1.4404 [AISI 316L] Flow Splitter: 1.4404 [AISI 316L] Option: NACE MR 0175/0103 compliant |
